可以改进质量检验过程的在线过程控制系统
LVS® 7000是市场上唯一一款能对污损/缺失条码进行检测的视觉系统,而且还提供了可变数据、条码读取和ISO分级等功能。

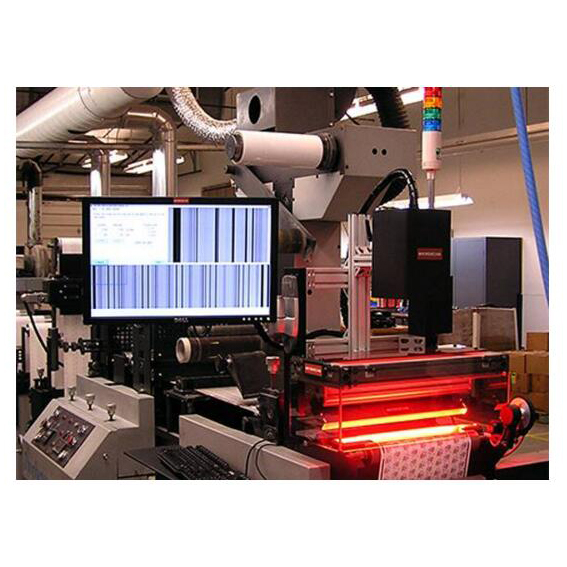

LVS® 7000是一种视觉检验系统,设计用于在生产线速度下对以下方面的打印质量进行检验:
1D和2D条码分级(根据ISO/IEC标准进行条码验证)
1D和2D条码读取(条码确认)
光学字符识别 (OCR)
光学字符验证 (OCV)
Master标签比较(污损检测)
条码完好度检查
Delta E
LVS® 7000是一个模块化系统,您可以对上述某一方面的打印质量进行检查,也可以同时对所有方面的打印质量进行检查 – 取决于您所购买的软件模块。
可以在表格或印幅上从任何方向对任意数量、任意尺寸的区域重复进行检查和映射!
污损识别
DELTA E颜色过程控制
重复数据检查
顺序/随机验证
ISO读取和1D和2D条码分级,包括QR条码、ECC-200数据矩阵、Composite Code等等
OCR 和 OCV
全息/反射/安全标记
标签卷映射
LVS-7000 打印质量检验系统 |
|
Part Number | Description |
LVS-7000 | Print Quality Inspection System |
Note: Rate of travel, web width and minimum bar width or smallest point sizes will impact camera resolution recommendation | |
Camera Types | Line scan and Area Scan options |
---|---|
Camera Resolution | 2K, 4K, 8K and 12K |
Lighting Options | Red, white and custom diffused options for foil and holograms |
PC Hardware | Multi-core Processor. Windows® XP and 7 operating system |
Cabinetry/Mounting Options |
• Choose either Hoffman Cabinet or Ergotron Arms. Actual system footprint will vary based on camera/PC and lighting requirements • Mounts on a press, slitter/rewinder, folder gluer, conveyor, and most other inspection platforms |
I/O | 8 digital outputs for programmable alarm and trigger requirements |
Electrical | 110VAC @ 60 Hz or 240VAC @ 50Hz |
ISO Grading Specifications | ISO 15416, ISO 15415, GS1 and other application standards |
Quality Control Manager | Remotely review errors, accept and reject errors prior to finishing. Customer to provide own PC running Windows® XP or 7 operating system |
Software Specifications |
• Graphics-oriented user interface under Windows® XP and 7 operating system • Multiple password protection security levels • 21 CFR Part 11 compliant ready with on board record keeping and job tracking • Automatic Setup feature for click and go changeovers • Reporting, logs and summary reports for Quality Assurance managers stored as CSV files for portability • Information is date and time stamped |
